What did you do to your rig Today? V2.0

GREASEMONKEY

GREASEMONKEY

#581
#581
97TJGUZZY said:
you will want the flexible mount at the trans, it allows a lot more movement than the two bushings mounted all the way out at the frame. I have seen a few examples of breaking the transmission bell housing from having it mounted with just the motor mounts and the frame mounts at the skid.
Click to expand...
I've seen the same thing happen back when I was racing cars. That usually happens when a motor mount goes weak, or fails. The added motion from the bad mount gives it more leverage, and can crack the bell housing.
It's a big risk to take with a Chrysler since the bell housings are mostly integral.

LBarr2002

LBarr2002

LIFETIME
SUPPORTER
#582
#582
97TJGUZZY said:
you will want the flexible mount at the trans, it allows a lot more movement than the two bushings mounted all the way out at the frame. I have seen a few examples of breaking the transmission bell housing from having it mounted with just the motor mounts and the frame mounts at the skid.
Click to expand...
With OEM clamshell type motor mounts or with bushing in tube style? OEM mounts allow a lot more movement, especially with worn ones, and I could see that happening. I was going off the trans mount kit from the same company I got my motor mounts (I didn't order the crossmember).

https://davescustomsunlimited.com/universal-transmission-crossmember-kit/

"The universal kit mounts to the inside of the frame above the skid plate. It allows the skid plate to be removed without lowering the transmission and transfer case assembly.

This well-engineered kit is designed to eliminate the factory center transmission mount, which will be mounted solid to the supplied plate. Furthermore, the urethane bushings at the ends of the new crossmember will act as the new transmission mount. The factory design was very poorly designed. It acted like a tripod. The engine was mounted solidly with two mounts and the transmission with one mount, which in return, the transmission wants to torque MORE than the engine. This is why guys/gals tear up their transmission mounts or crack their adapter housing. With our well thought out, unique design, you now have FOUR engine and transmission mounts, which will allow everything to torque the same, furthermore, alleviating blown out transmission mounts and cracked adapter housings."

I may actually go with something like this from advance adapters, which goes with the tcase adapter kit I'm using, and acts as a partial spine to reinforce the mount. Still with a removable crossmember, but it could be hard mounted at the frame.

http://www.advanceadapters.com/products/716055--heavy-duty-transmission-mount/

Last edited:
97TJGUZZY

97TJGUZZY

SUPPORTER
#583
#583
LBarr2002 said:
With OEM clamshell type motor mounts or with bushing in tube style? OEM mounts allow a lot more movement, especially with worn ones, and I could see that happening. I was going off the trans mount kit from the same company I got my motor mounts (I didn't order the crossmember).

https://davescustomsunlimited.com/universal-transmission-crossmember-kit/

"The universal kit mounts to the inside of the frame above the skid plate. It allows the skid plate to be removed without lowering the transmission and transfer case assembly.

This well-engineered kit is designed to eliminate the factory center transmission mount, which will be mounted solid to the supplied plate. Furthermore, the urethane bushings at the ends of the new crossmember will act as the new transmission mount. The factory design was very poorly designed. It acted like a tripod. The engine was mounted solidly with two mounts and the transmission with one mount, which in return, the transmission wants to torque MORE than the engine. This is why guys/gals tear up their transmission mounts or crack their adapter housing. With our well thought out, unique design, you now have FOUR engine and transmission mounts, which will allow everything to torque the same, furthermore, alleviating blown out transmission mounts and cracked adapter housings."

I may actually go with something like this from advance adapters, which goes with the tcase adapter kit I'm using, and acts as a partial spine to reinforce the mount. Still with a removable crossmember, but it could be hard mounted at the frame.

http://www.advanceadapters.com/products/716055--heavy-duty-transmission-mount/
Click to expand...
https://www.pirate4x4.com/forum/gen...930-help-breaking-transfer-case-adapters.html

https://www.pirate4x4.com/forum/new...ssion/2387650-motor-crossmember-mounting.html

https://www.pirate4x4.com/forum/jeep-hardcore-tech/404437-tranny-x-member-mount.html

https://www.pirate4x4.com/forum/gen...8-removable-skidplate-crossmember-design.html

https://www.pirate4x4.com/forum/jeep-hardcore-tech/182679-crossmember-mount-question.html

I have a Ford T18 and Dana 300. I had an adapter and built a crossmember that bolted directly to the adapter. Had bushings only on each end of the xmember where it attached to the frame. I ended up breaking the adapter. At that point, found two things: 1) the adapter had a casting defect and 2) my method of mounting was wrong. There HAS to be a bushing there. I posted about it and that was the consensus, although in all my searches to that point I had seen them without bushings. Go2Guy and others said nogo on my setup. The basic idea is that the assembly has to be able to rotate slightly. My method didn't allow for that. High5 also built one like mine and broke the adapter.
Click to expand...

tons of info on pirate about the tripod style mounts. I don't have time to go through all of it. I'm just telling you I have heard lots of horror stories.

LBarr2002

LBarr2002

LIFETIME
SUPPORTER
#584
#584
97TJGUZZY said:
https://www.pirate4x4.com/forum/gen...930-help-breaking-transfer-case-adapters.html

https://www.pirate4x4.com/forum/new...ssion/2387650-motor-crossmember-mounting.html

https://www.pirate4x4.com/forum/jeep-hardcore-tech/404437-tranny-x-member-mount.html

https://www.pirate4x4.com/forum/gen...8-removable-skidplate-crossmember-design.html

https://www.pirate4x4.com/forum/jeep-hardcore-tech/182679-crossmember-mount-question.html




tons of info on pirate about the tripod style mounts. I don't have time to go through all of it. I'm just telling you I have heard lots of horror stories.
Click to expand...
Its settled then. I'll have to see what I have on the 4l60, but I'll either use a stock type mount or the AA spine mounted to a rigid crossmember.

LBarr2002

LBarr2002

LIFETIME
SUPPORTER
#587
#587

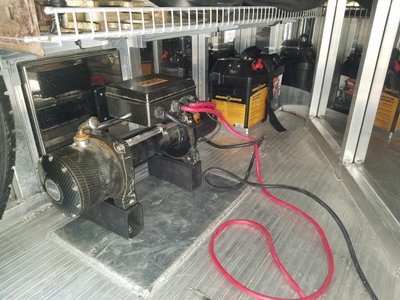

Finally got around to the winch install in the trailer. I'm one bolt short so quit for the day.

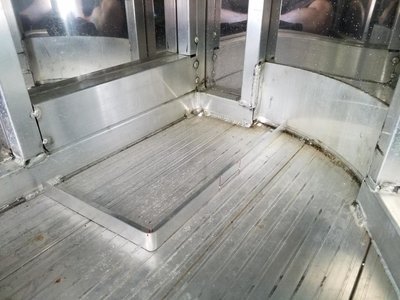

I made a battery tray from aluminum angle.

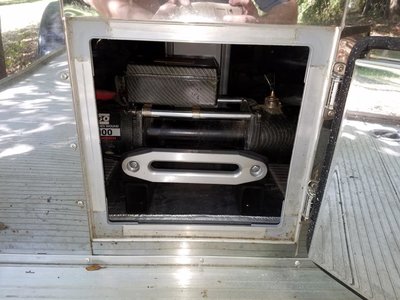

I got a tractor supply winch plate to hold the fairlead, but had to make some blocks to get it up above the bottom of the door.



GREASEMONKEY

GREASEMONKEY

#590
#590

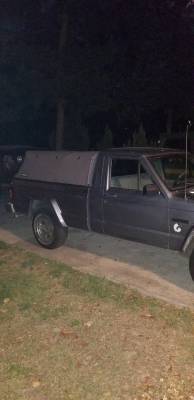

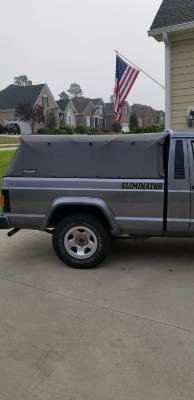

Yesterday the Comanche got New AC compressor, accumulator\dryer, expansion valve, complete flush, new o-rings, and the last fitting on the lower condenser fu****g self destructs!!🤬🤬🤬🤬🤬🤬🤬
Currently awaiting a new condenser, and line to the accumulator\dryer. So still no AC until Wednesday!

GREASEMONKEY

GREASEMONKEY

#591
#591

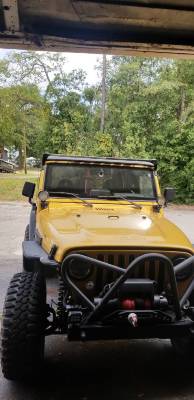

I had a CARR light bar years ago but removed it, and ended up selling it. CARR made these to bolt directly into the windshield frame, so for years I've had plugs in 3 holes on each side of my windshield. I started looking at getting a replacement a few years ago, but CARR had long since stopped production of that design.
A few weeks ago I found someone on Facebook marketplace selling one a few weeks ago. Worked out payment & shipping, and finally got a light bar again
Now to pull it back off, put some fresh paint on, and mount my LED bar! c086e23e0189d7880c74eb3a3c8917fa.jpg

D

DanStew

#592
#592
Got the Engine and gear boxes put back on the Rover chassis. Reinstalled the radiator and put its pretty face back on.
Getting real excited now to start putting it back together.



D

DanStew

#594
#594
I am not sure. I am hoping by January. It is busy time for me because football season started and now i work 6 days a week. But I have most everything to complete it except for driveshafts.

jeepman1979

jeepman1979

SUPPORTER
#595
#595
I’m not a big fan of mounting a hi lift jack on the hood, but I’m running out of real estate in the back of the cj, still need to decide where to put the spare tire



Sent from my iPhone using Tapatalk

GREASEMONKEY

GREASEMONKEY

#596
#596
jeepman1979 said:
I’m not a big fan of mounting a hi lift jack on the hood, but I’m running out of real estate in the back of the cj, still need to decide where to put the spare tire



Sent from my iPhone using Tapatalk
Click to expand...
Ditch the tailgate, build a rear tire swing that puts the tire right over the rear sill into the cargo area. You don't run a full top on that CJ anyways, so it's not interfering with that, and it's using several inches of what is normally wasted real estate.

Just a thought!

jeepman1979

jeepman1979

SUPPORTER
#597
#597
GREASEMONKEY said:
Ditch the tailgate, build a rear tire swing that puts the tire right over the rear sill into the cargo area. You don't run a full top on that CJ anyways, so it's not interfering with that, and it's using several inches of what is normally wasted real estate.

Just a thought!
Click to expand...
Im thinking about building a swinging tire carrier, my tool box, strap box, and my fridge cooler sit in the rear cargo area


Sent from my iPhone using Tapatalk

B

billoftt

#600
#600

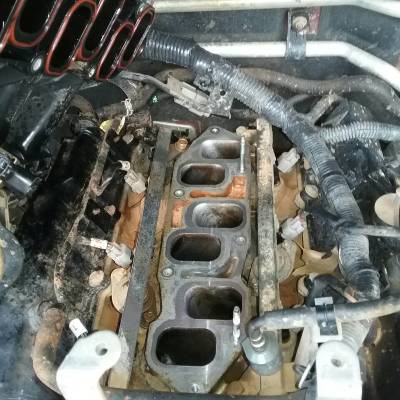

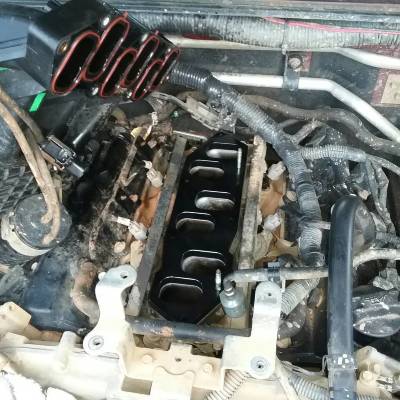

I changed the spark plugs today. One of the quirks of Xterrs is that one needs to remove the intake plenum to get the passenger side bank of plugs. So, since I alreeady had that labor done, I installed an intake manifold spacer.

Really good torque increase down low and in the middle. 9eb5f4771cb784a66a6d2988defdf427.jpg e659e6e9e592c9b2a0ece986a5ff6713.jpg

Sent from my SM-J320P using Tapatalk
