Free Fabricator DXF Files

[Twilliamson]

Since I have a CNC plasma now at work, I have been making all sorts of brackets, gussets and other parts, thought I would share the effort.



[Twilliamson]

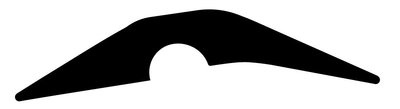

TJ Drag Link Gusset



[Twilliamson]

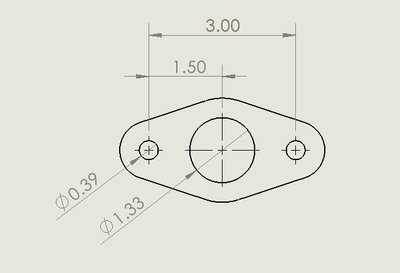

Poop Pipe Flange - 1.33 OD Tubing



[97TJGUZZY]

Poop Pipe Flange - 1.33 OD Tubing
View attachment 20863

works well! I can attest the fit is perfect



[Twilliamson]

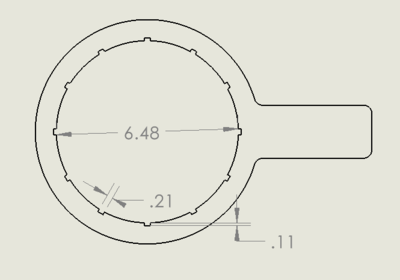

TJ Fuel Pump Wrench - May Fit others.

Wrench for removing the plastic nut that holds in the fuel pump.
